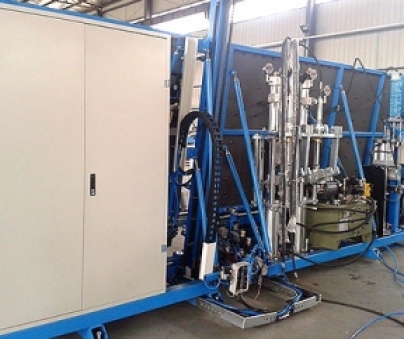

當前位置：全自動中空玻璃生產線生產及各部件要求
時間：2023-04-28 來源：http://m.txxfj.com/ 發布人：昌盛機械
1）整條生產線采用日本歐姆龍PLC及德國西門子變頻調速器另加臺灣步科真彩觸摸屏以日本奧普士傳感控制器。
1) The entire production line adopts Japanese Omron PLC and German Siemens variable frequency governor, as well as Taiwanese Buke true color touch screen and Japanese Opus sensor controller.
2)整機采用六個變頻調速器，各段合理輸送，生產。
2) The entire machine adopts six variable frequency governors, and each section is transported reasonably for production.
3)擁有內合、外合兩套立程序，均可生產兩層、三層中空玻璃。
3) We have two sets of vertical programs, internal and external, which can produce two or three layers of insulating glass.
4)全部減速機采用精密鑄鋁，渦輪為鑄造錫青銅材料。
4) All reducers are made of precision cast aluminum, and the turbine is made of cast tin bronze material.
5)軸承全部為全鋼軸承，轉動靈活無噪音。
5) All bearings are made of all steel, with flexible rotation and no noise.
6)全部輸送軸采用數控加工中心加工，了軸的精度，再配以的軸承，因此玻璃運行平穩，高速。
6) All conveying shafts are processed using CNC machining centers, which improve the accuracy of the shafts and are equipped with bearings, resulting in smooth and high-speed glass operation.
7）輸送輪為聚氨脂材料，耐磨且噪音低，滾輪是兩個合在一起的，可以重復使用四次。
7) The conveyor wheel is made of polyurethane material, which is wear-resistant and has low noise. The rollers are two combined and can be reused four times.
8）鋁框定位實現縱向、橫向雙向定位且可調整。方便放置鋁框的速度和精度。
8) The aluminum frame positioning achieves vertical and horizontal bidirectional positioning and is adjustable. Convenient speed and accuracy for placing aluminum frames.
9）輸送段玻璃定位均采用擺動式，確保玻璃不錯位，擋板磨損小。
9) The positioning of the glass in the conveying section adopts a swinging type to ensure that the glass is not misaligned and the baffle is less worn.
10）外合段的進退采用液壓方式，平穩可靠。橫梁升降均采用臺灣上銀直線導軌和滑塊，確保橫梁升降平穩。
10) The forward and backward movement of the outer closing section adopts hydraulic mode, which is stable and reliable. The lifting of the crossbeam adopts Taiwan Shangyin linear guide rails and sliders to ensure smooth lifting of the crossbeam.
