立式中空玻璃平壓生產線是生產槽鋁式中空玻璃的理想設備，由上片機、清洗烘干機、檢查運輸機、鋁框定位機、自動合片機、平壓合片機、下片機等七臺設備組成。背板采用高檔UV漆面板，防潮性能好，美觀大方。整機具有自動化程度高，效率高，易操作等特點。是投資中空玻璃項目的優選設備。

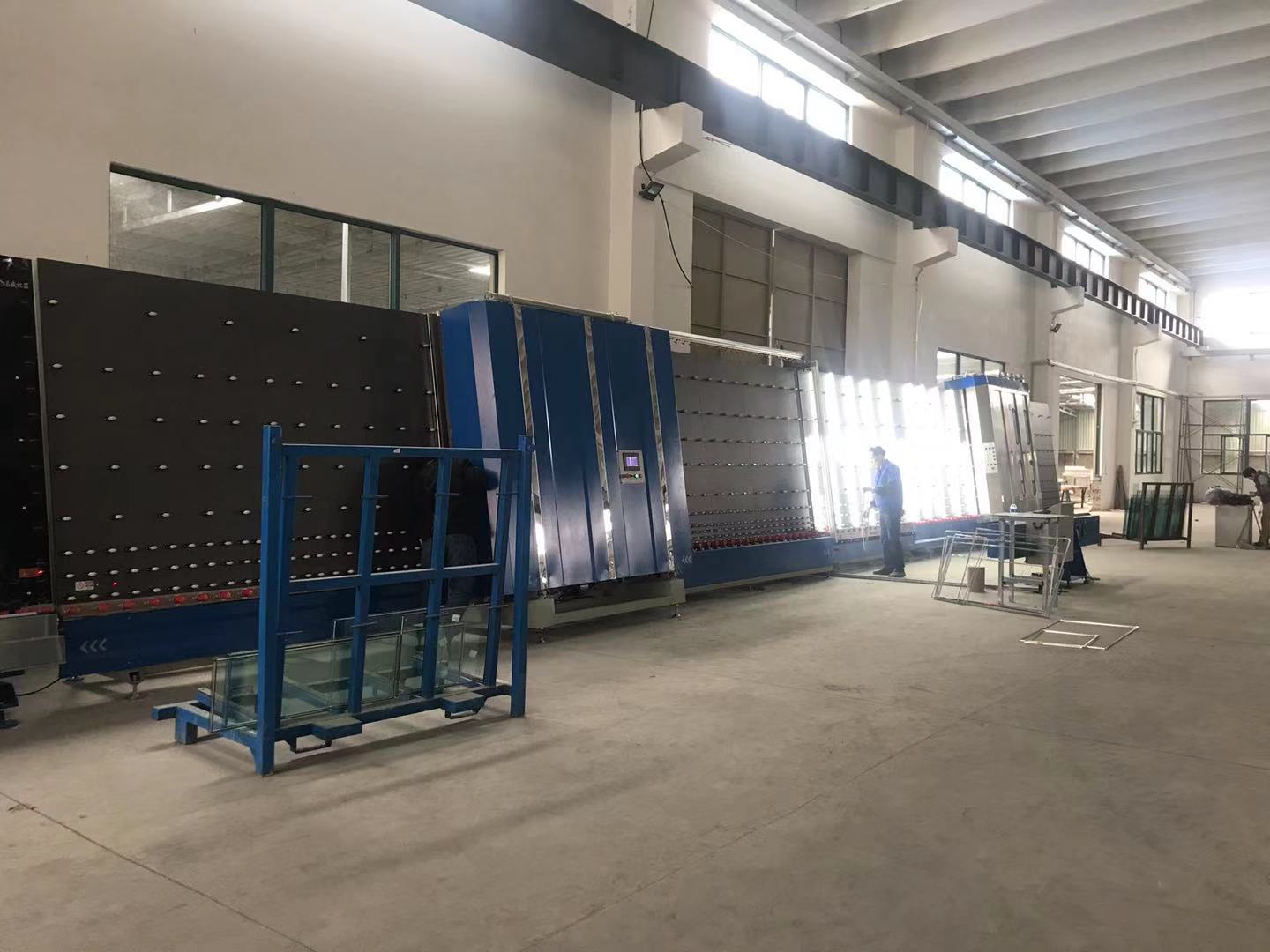

The vertical flat pressing production line for hollow glass is an ideal equipment for the production of trough aluminum type hollow glass. It consists of seven sets of equipment, including loading machine, cleaning and drying machine, inspection conveyor, aluminum frame positioning machine, automatic laminating machine, flat pressing laminating machine and unloading machine. The back plate adopts high-grade UV paint panel, with good moisture-proof performance and beautiful appearance. The whole machine has the characteristics of high automation, high efficiency and easy operation. It is the preferred equipment for investment in insulating glass projects.
2、清洗機采用全不銹鋼整體箱體結構，激光定位打孔，精度高。由清洗倉、噴淋倉、風干倉等部分構成，外接水箱和強力風機。進給系統自動張緊，適合不同厚度的玻璃的清洗。具有三對進口杜邦絲軟毛刷逐級清洗，可清洗鍍膜及Low-E玻璃，不會對鍍膜層造成明顯損傷；不銹鋼水箱隔置成兩個獨立倉，均配有給水泵及水過濾裝置，分別給清洗和噴淋供水，良好地發揮出節水和高潔凈清洗性能。強力風機采用循環給風，配置二對風刀逐級風干，可大大提高清洗速度。減少外部粉塵對風干玻璃的靜電影響，可根據環境自主選擇給風方式，清洗風干效果非常好，并且噪音小。

2. The cleaning machine adopts the whole stainless steel box structure, laser positioning and drilling, with high accuracy. It is composed of cleaning bin, spraying bin, air drying bin and other parts, and externally connected with water tank and strong fan. The feeding system is automatically tensioned, suitable for the cleaning of glass with different thickness. With three pairs of imported DuPont silk soft bristle brushes, it can clean the coating and Low-E glass step by step, without any damage to the coating layer; The stainless steel water tank is separated into two independent bins, each equipped with a water supply pump and a water filter device to supply water for cleaning and spraying respectively, thus giving good play to water saving and high cleaning performance. The powerful fan adopts circulating air supply and is equipped with two pairs of air blades to dry step by step, which can greatly improve the cleaning speed. To reduce the electrostatic impact of external dust on the air dried glass, the air supply mode can be independently selected according to the environment. The cleaning air drying effect is particularly good and the noise is small.
3、自動合片機采用自動定位、合片、預緊，無需人為干預，合片準確、快速。自動識別玻璃高度尺寸的變化，自動調整橫梁高度。合片板具有雙退回位置，可根據間隔條的尺寸設定不同的退回距離，保證玻璃合片的整齊度。
3. The automatic lamination machine adopts automatic positioning, lamination and pre tightening, without human intervention, and the lamination is accurate and fast. Automatically recognize the change of glass height and automatically adjust the beam height. The lamination plate has double retraction positions, and different retraction distances can be set according to the size of the spacer bar to ensure the uniformity of the glass lamination.
4、平壓機后壓板帶有氣浮裝置，保護玻璃表面不被劃傷，污染。前壓板內置真空吸附系統，與真空發生器控制系統相比，其特點：該系統不受氣源變化而影響橡膠吸盤吸力造成吸附不牢的現象。其特點是：運行穩定，壓合效果好，速度快，不錯片，維護成本低，使用壽命長，無易損件等優點。獨有的前、后托料系統，使前后片玻璃托升至同一高度進行壓合，避免了玻璃在行進輪上合片玻璃對行進輪的磨損，同時解決了由于長期使用過程中行進輪磨損造成的成品中空玻璃上下錯位和玻璃碎片的問題。
4. The rear platen of the flat press is equipped with an air flotation device to protect the glass surface from scratches and pollution. The front pressure plate has a built-in vacuum adsorption system. Compared with the control system of the vacuum generator, its characteristics are that the system is not affected by the change of the air source and the suction force of the rubber suction cup is not strong. It is characterized by stable operation, good pressing effect, fast speed, good quality, low maintenance cost, long service life and no wearing parts. The unique front and rear supporting system makes the front and rear glass supports rise to the same height for pressing, avoiding the abrasion of the traveling wheel caused by the glass laminated on the traveling wheel, and solving the problems of the upper and lower dislocation of the finished insulating glass and glass fragments caused by the abrasion of the traveling wheel during long-term use.
5、整條生產線采用進口PLC和變頻器控制、全中文彩色觸摸屏操作和顯示，方便直觀的反映機器的工作狀態，報警數據實時顯示在觸摸屏上，讓操作者對機器的運行狀態實時掌控，降低維護難度。具有板內自動合片、板外自動合片、單壓等多種工作模式。用戶可根據玻璃、鋁條及丁基膠不同，自己設定不同的停止時間、壓合時間及壓合壓力，可實現高速度和高壓合質量的巧妙結合!用戶可根據實際需要設定首片運行狀態和雙層中空、三層中空。人性化可自由設定的自動休眠功能，在設定時間內沒有玻璃上機的情況下，機器會自動進入休眠狀態，當玻璃上機后自動喚醒運行，降低了無謂的電量浪費和噪音，節能效果明顯。
5. The whole production line is controlled by imported PLC and frequency converter and operated and displayed by full Chinese color touch screen, which is convenient and intuitive to reflect the working state of the machine. The alarm data is displayed on the touch screen in real time, so that the operator can control the running state of the machine in real time and reduce the maintenance difficulty. It has a variety of working modes such as automatic lamination inside the board, automatic lamination outside the board and single pressure. Users can set different stop time, pressing time and pressing pressure according to different glass, aluminum strip and butyl rubber, which can realize the perfect combination of high speed and high pressure bonding quality! The user can set the operation state of the first piece, double-layer hollow and three-layer hollow according to the actual needs. Humanized automatic sleep function that can be freely set. In the case that there is no glass on the machine within the set time, the machine will automatically enter the sleep state. When the glass is on the machine, it will automatically wake up for operation, reducing unnecessary power waste and noise, and achieving obvious energy saving effect.
選擇合適的齒輪油，可以降低設備的潤滑成本；幫助齒輪散熱，起到一定的冷卻作用；降低摩擦，減少工作噪音，減少功率損失，延長齒輪壽命；防止金屬腐蝕或生銹；提高生產效率等。
Selecting proper gear oil can reduce the lubrication cost of the equipment; Help the gear to dissipate heat and play a certain cooling role; Reduce friction, reduce working noise, reduce power loss and prolong gear life; Prevent metal corrosion or rusting; Improve production efficiency, etc.
齒輪油在整個生產過程中都起到了不可忽視的作用，所以一個合適的齒輪油是必不可少的，但運行的過程中也要多加注意，避免異常狀況的出現。
Gear oil plays an important role in the whole production process, so a proper gear oil is essential. However, more attention should be paid to avoid abnormal conditions during operation.
以上就是為大家介紹的有關中空玻璃生產線的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://m.txxfj.com
The above is the detailed introduction of the insulating glass production line. I hope it will help you. If you have any questions, please contact us. We will provide you with services in a professional manner http://m.txxfj.com
